No Penetration on Tile

The following is a demonstration of our installation technique that sets us apart from others. See notes below:

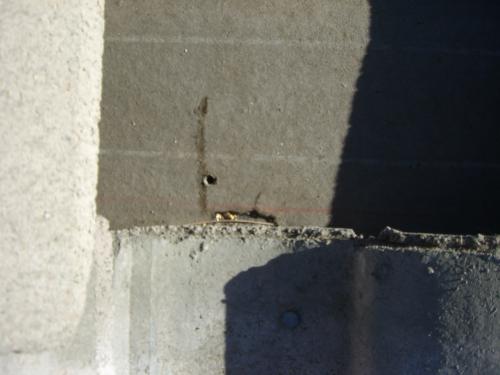

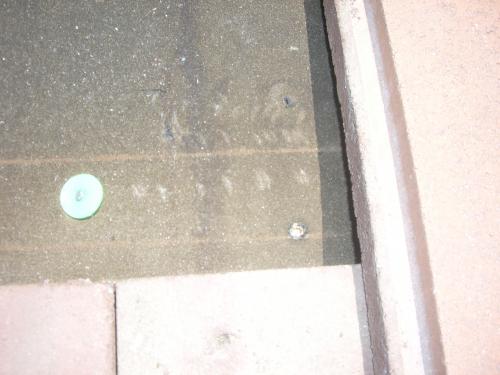

 Only 1/8 of an inch, on center of roof rafter - no penetration through tile

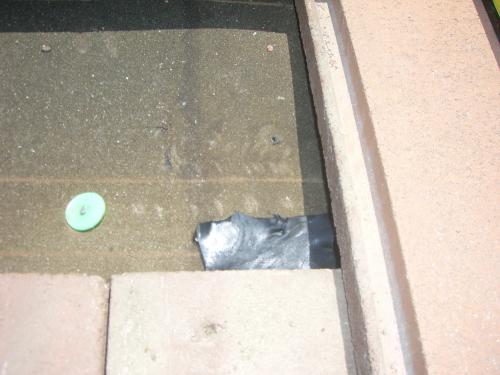

  Butyl tape (German product)   to seal the small hole

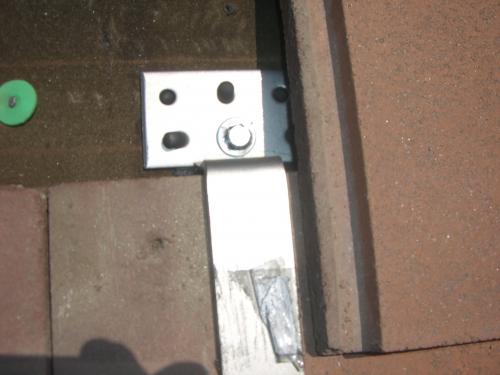

 3 1/2 x 5/16th stainless steel lug bolt

No penetration on tile, array floats above maintainng original roof warranty

Same technique but different type tile

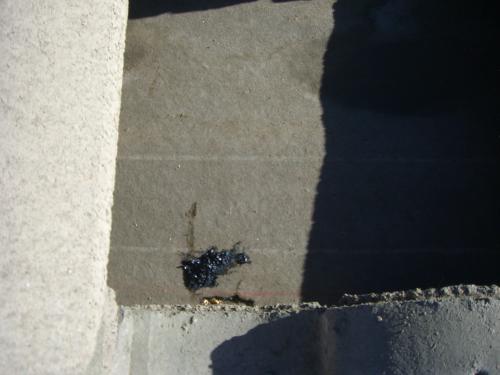

 SyKaflex sealent

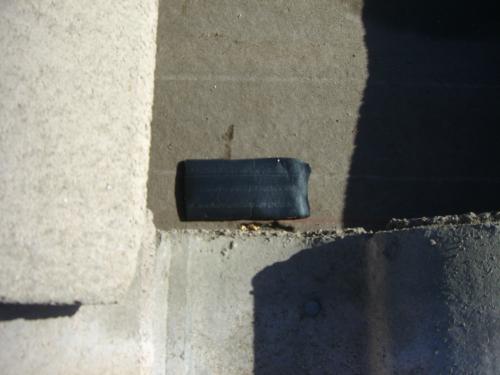

Butyl tape

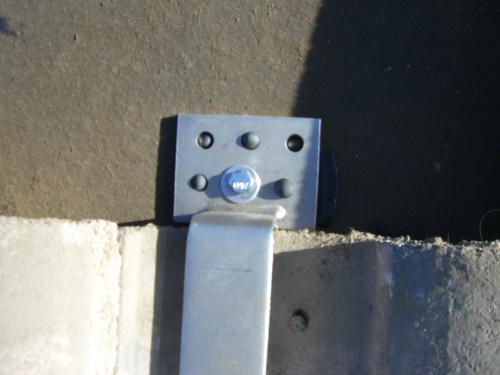

stainless steel lug bolt

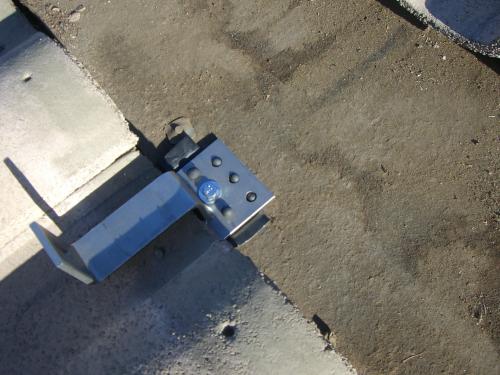

 Stainless steel lug bolt different angle notice the additional sealing technque

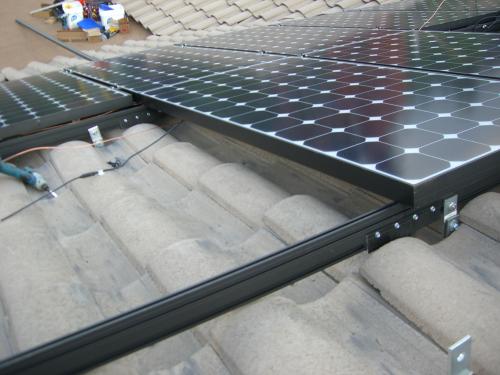

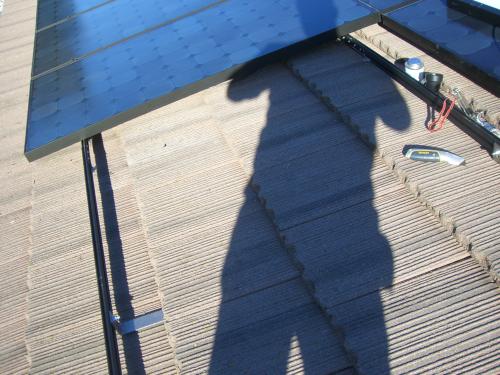

Example of how the array appear under thee panels with no penetration on S-Tile's

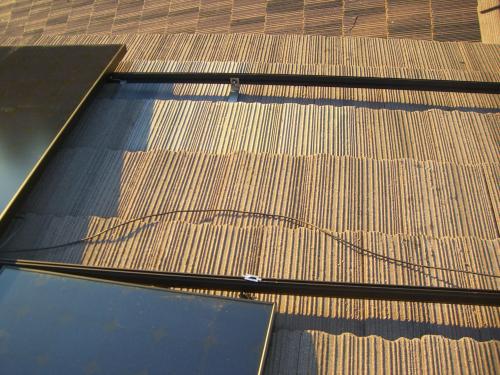

Example of how the array appear under the panels with no penetration on Flat tile

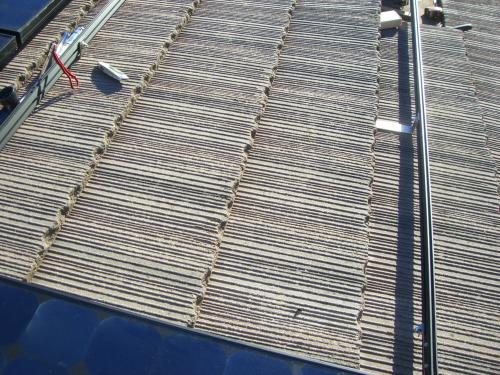

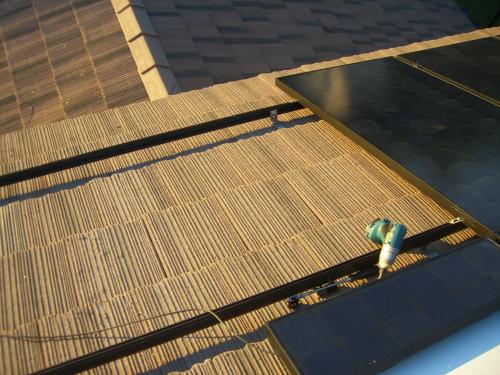

 Flat tile rail with  no penetrations

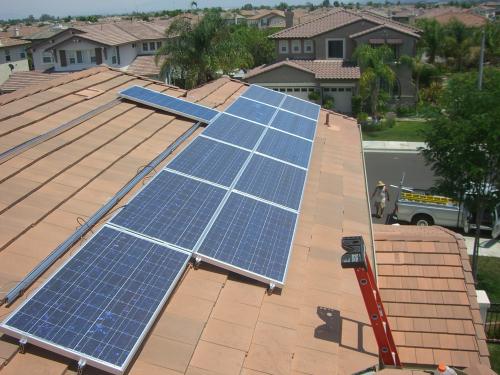

Another example

 Another example
